Fleetguard · Fuel/Water Separators

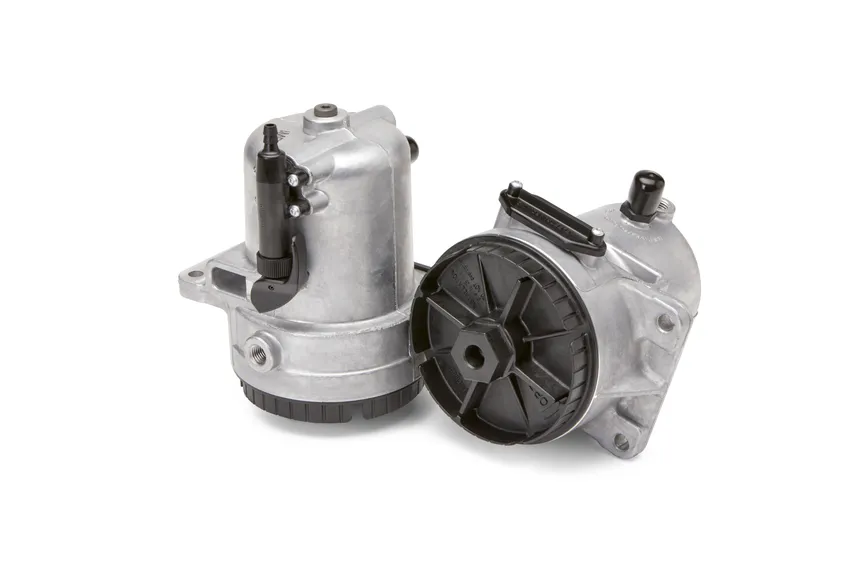

FS1269
CUMMINS 3945134; Top load FWS w/o heater; Replaces FS1257; Housing used with FS1268, FS1261, FS19855
Fleetguard 2015 product guide · PDF page 746 · Printed page E201
Specifications & Catalogue Notes
Overall Height: 7.5 (190)
Length: 5.43 (138)
Width: 5.76 (146)
Outlet Connection: M12 X 1.5-6H
INT
Inlet Connection: M12 X 1.5-6H
INT
Pressure Diagnosis Port: YES
WIF Sensor: YES
Source Reference
Confirm application and fitment with our team using the part number and equipment details.
