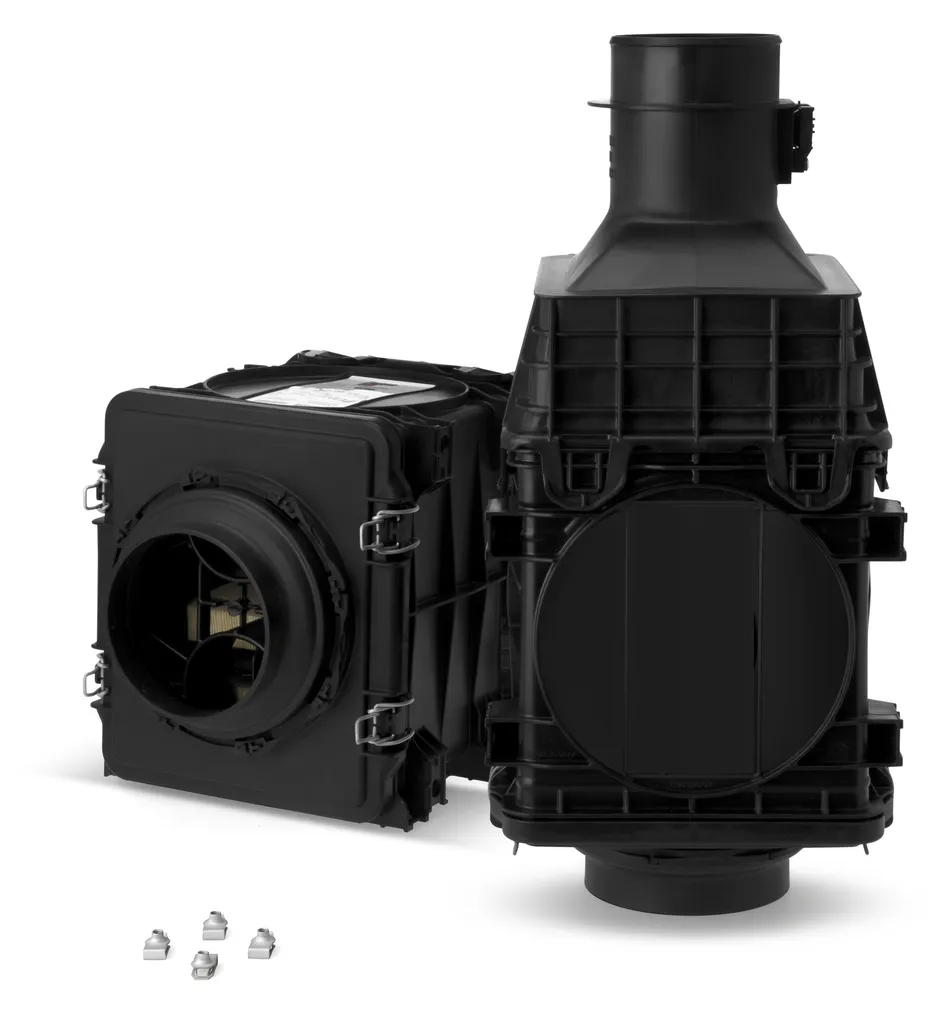

Fleetguard · Air Housings
AH55630
CUMMINS 5305976; Air Housing
Fleetguard 2015 product guide · PDF page 688 · Printed page E143
Specifications & Catalogue Notes
Overall Height: 20.51 (521)
Overall Length: 10.91 (277)
Overall Width: 9.49 (241)
Outlet Diameter: 3.98 (101)
Primary Rated Flow: 325.0 cfm
Maximum Recommended
Rated Flow: 400.0 cfm
Minimum Recommended
Rated Flow: 150.0 cfm
Pre-cleaner: No
Type Cleaner Inlet:
Straight (In-Line)
Type Seal: Radial
Inlet Transition Diameter: 5.0
(127)
Source Reference
Confirm application and fitment with our team using the part number and equipment details.
