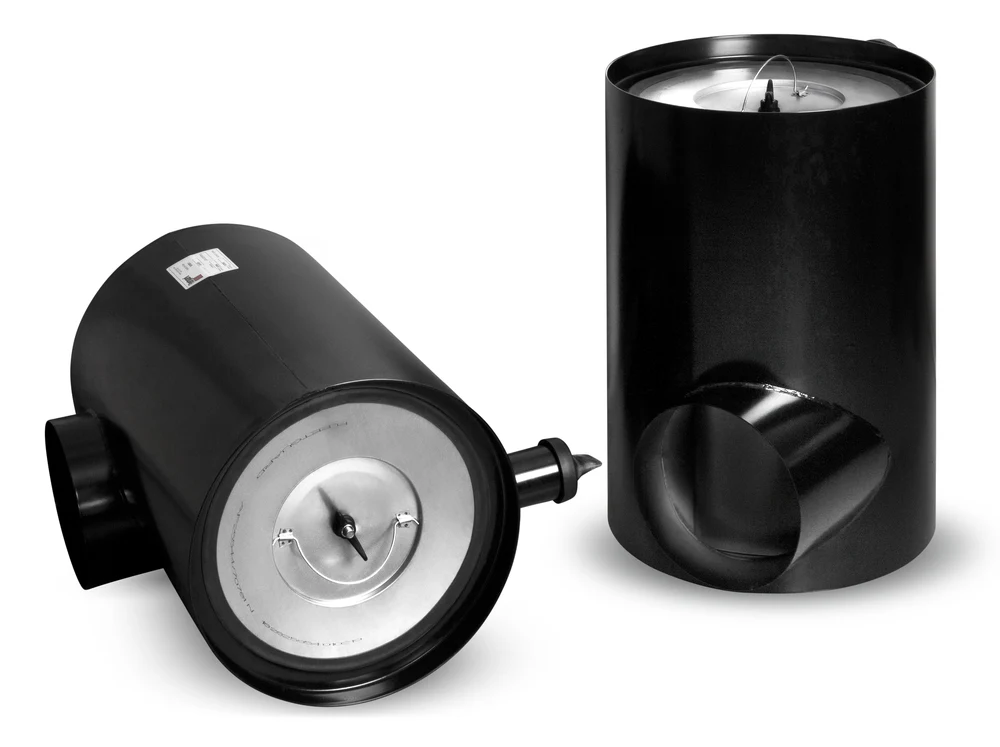

Fleetguard · Air Housings
AH19076
NELSON 71838N; Uses service part(s) 3918237S, 3918244S; Housing used with AF25544, AF25545; Uses Element(s): AK160, AK163; Air Housing; Replaces AH1153
Fleetguard 2015 product guide · PDF page 682 · Printed page E137
Specifications & Catalogue Notes
Overall Height
w/o Wing Nut: 28.96 (736)
Side Connection
Height: 2.44 (62)
Side Connection Loc: 20.4 (518)
Side Connection OD: 10.0 (254)
Largest housing OD: 18.12 (460)
End Connection Height: 3.0 (76)
End Connection OD: 8.0 (203)
Dust collector: YES
Source Reference
Confirm application and fitment with our team using the part number and equipment details.
