FilteQ · Technical Reference
MIT Filter Specifications
Dimensions and performance data for nine filter families, as listed in the supplied MIT sheet.
These family specifications are separate from the HEPA product ratings shown elsewhere in the catalogue. Use the stated MERV rating and source dimensions when selecting a filter.
MIT Technical Reference

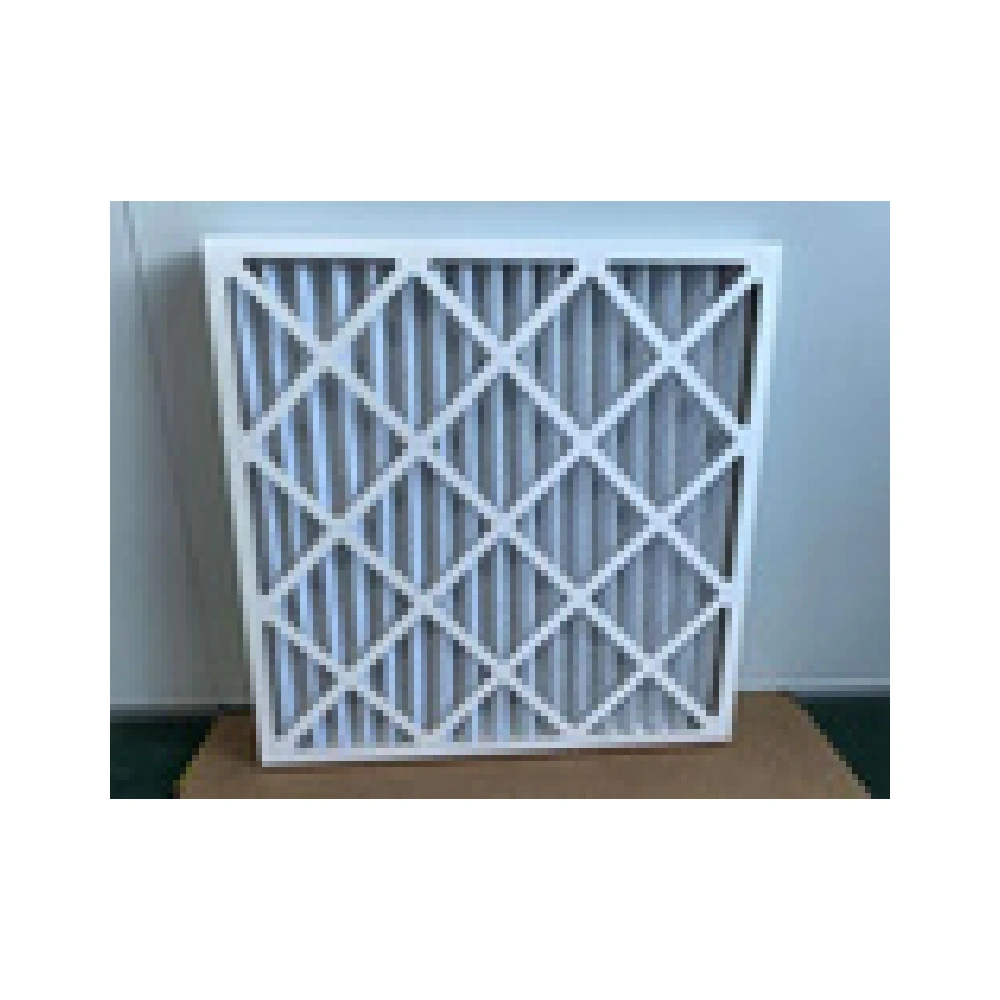

Primary Pleated Filter
Composite media with metal support; 600 g paper frame
| Source Dimensions | MERV | Airflow m³/h | Initial ΔP Pa | Final ΔP Pa | Media Area m² | Average Efficiency | Average Arrestance |
|---|---|---|---|---|---|---|---|
| 20*16*2" (495*395*46mm) | MERV 7 | 1,850 | 43 | 250 | 0.912 | 25–35% | ≥92% |
| 24*16*2" (595*395*45mm) | MERV 7 | 2,250 | 43 | 250 | 1.102 | 25–35% | ≥92% |
| 16*20*2" (395*495*46mm) | MERV 7 | 1,850 | 43 | 250 | 0.904 | 25–35% | ≥92% |
| 12*24*2" (295*595*46mm) | MERV 7 | 1,700 | 43 | 250 | 0.858 | 25–35% | ≥92% |
| 24*16*2" (595*395*45mm) | MERV 7 | 2,250 | 69 | 250 | 1.087 | 25–35% | ≥92% |
| 24*24*2" (595*595*46mm) | MERV 7 | 3,400 | 43 | 250 | 1.659 | 25–35% | ≥92% |
Media-area ratio: 4.6 sq.ft/sq.ft.
MIT Technical Reference

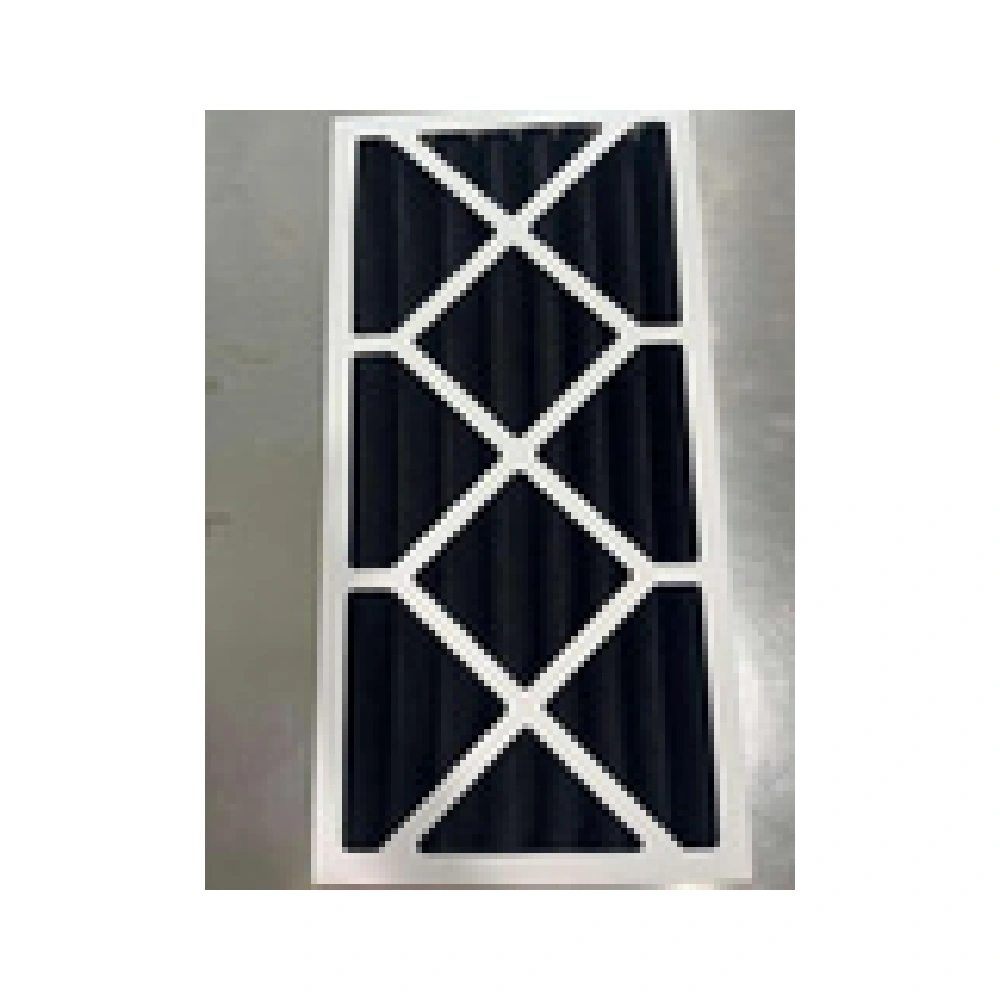

Carbon Pleated Filter
Activated-carbon media with metal support; 600 g paper frame
| Source Dimensions | MERV | Airflow m³/h | Initial ΔP Pa | Final ΔP Pa | Media Area m² | Average Efficiency | Average Arrestance |
|---|---|---|---|---|---|---|---|
| 595*595*46mm | MERV 7 | 3,400 | 81 | 250 | 1.659 | 25–35% | ≥92% |
| 289*594*46mm | MERV 7 | 1,700 | 81 | 250 | 0.8 | 25–35% | ≥92% |
Media-area ratio: 4.6 sq.ft/sq.ft.
MIT Technical Reference

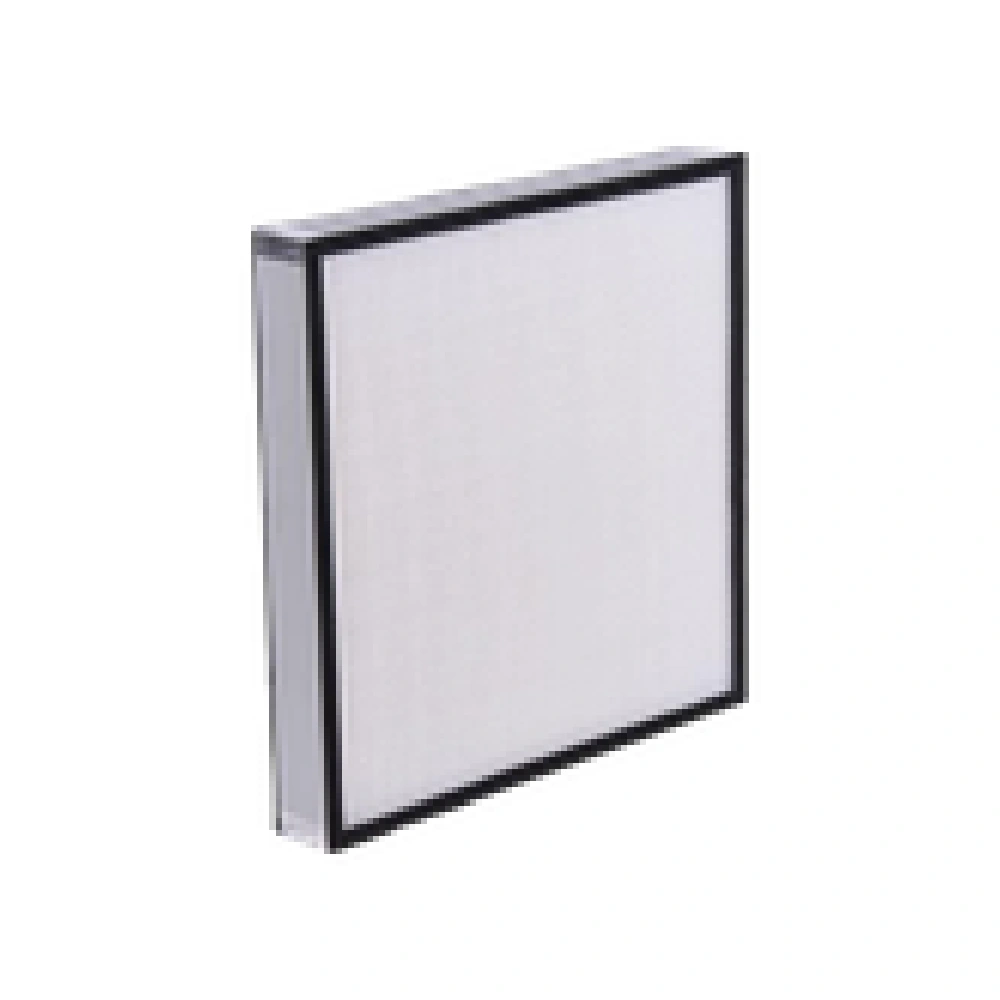

Minipleat Filter
Galvanised frame; glass fibre; two faceguards; without gasket
| Source Dimensions | MERV | Airflow m³/h | Initial ΔP Pa | Final ΔP Pa | Media Area m² | Average Efficiency | Average Arrestance |
|---|---|---|---|---|---|---|---|
| 12*24*2" (295*595*46mm) | MERV 14 | 1,700 | 150 | 350 | 2.9 | 90–95% | ≥99% |
| 24*24*2" (595*595*46mm) | MERV 14 | 3,400 | 150 | 350 | 5.84 | 90–95% | ≥99% |
MIT Technical Reference

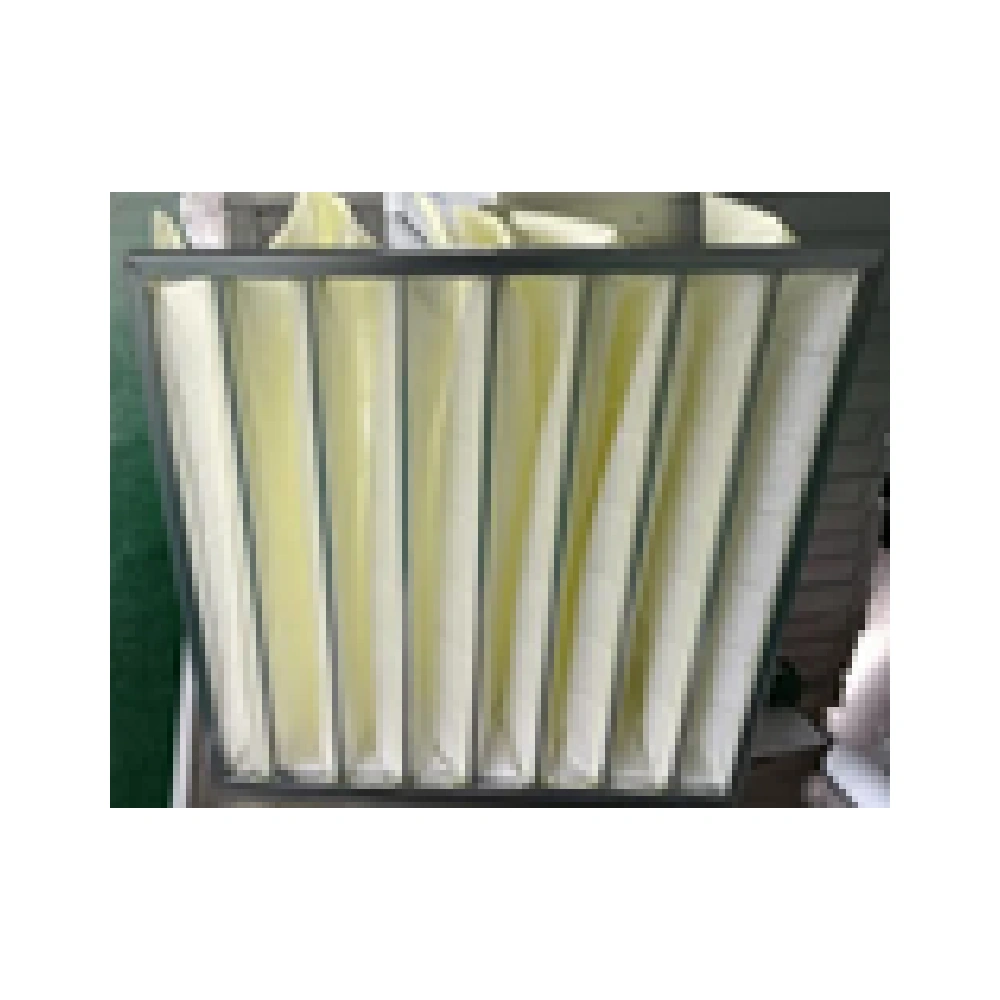

Synthetic Pocket Filter
21 mm galvanised frame; synthetic media
| Source Dimensions | MERV | Airflow m³/h | Initial ΔP Pa | Final ΔP Pa | Media Area m² | Average Efficiency | Average Arrestance |
|---|---|---|---|---|---|---|---|
| 16*20*15"-5P (392*492*381mm) | MERV 14 | 1,850 | 80 | 350 | 2.344 | 90–95% | ≥99% |
| 12*24*12"-4P (292*592*300mm) | MERV 14 | 1,700 | 85 | 350 | 1.792 | 90–95% | ≥99% |
| 24*24*12"-8P (592*592*300mm) | MERV 14 | 3,400 | 85 | 350 | 3.584 | 90–95% | ≥99% |
| 12*24*15"-4P (292*592*381mm) | MERV 14 | 1,700 | 80 | 350 | 2.202 | 90–95% | ≥99% |
| 16*24*15"-4P (392*592*381mm) | MERV 14 | 2,250 | 90 | 350 | 2.88 | 90–95% | ≥99% |
| 16*24*15"-5P (392*592*381mm) | MERV 14 | 2,250 | 80 | 350 | 2.77 | 90–95% | ≥99% |
| 24*24*15"-6P (592*592*381mm) | MERV 14 | 3,400 | 90 | 350 | 3.43 | 90–95% | ≥99% |
| 24*24*15"-8P (592*592*381mm) | MERV 14 | 3,400 | 80 | 350 | 4.40 | 90–95% | ≥99% |
| 12*24*22"-3P (292*592*560mm) | MERV 14 | 1,700 | 75 | 350 | 2.43 | 90–95% | ≥99% |
| 24*24*22"-6P (592*592*560mm) | MERV 14 | 3,400 | 75 | 350 | 4.868 | 90–95% | ≥99% |
MIT Technical Reference

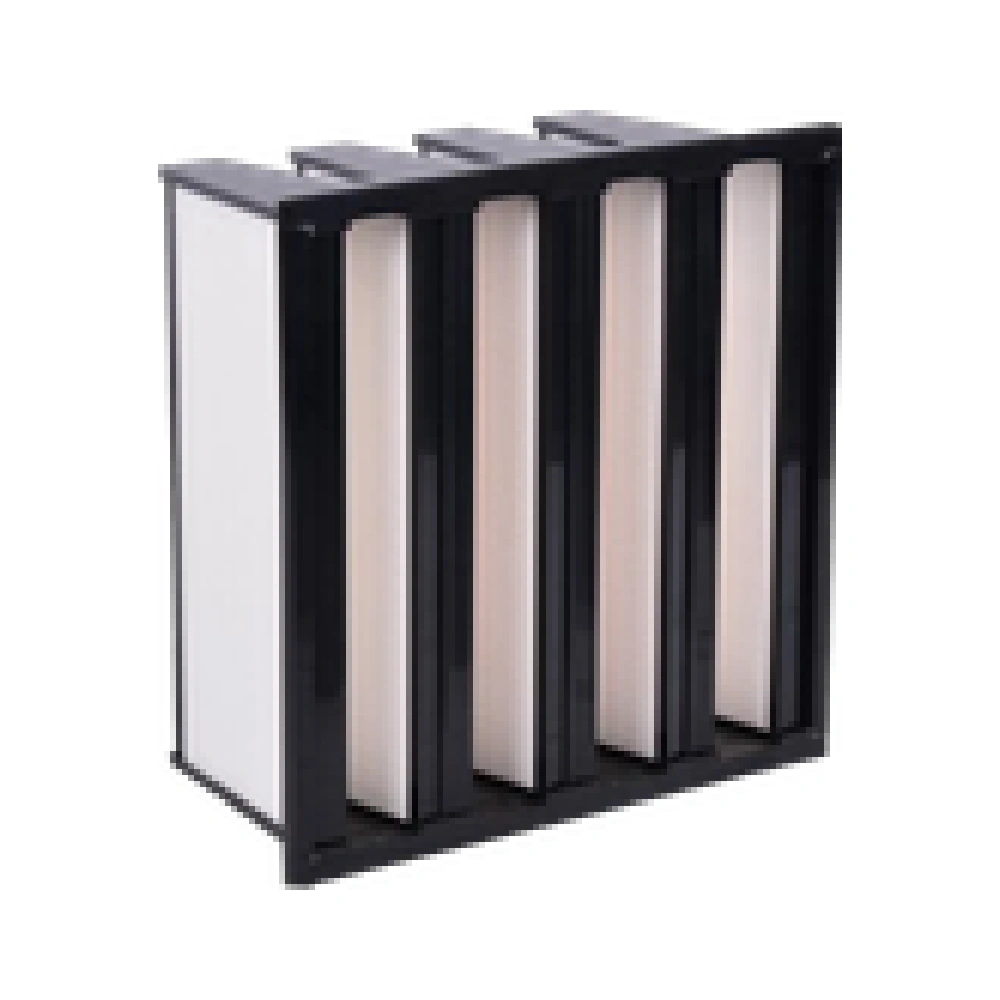

C-Cell Minipleat Filter
Galvanised frame; glass fibre; two faceguards; without gasket
| Source Dimensions | MERV | Airflow m³/h | Initial ΔP Pa | Final ΔP Pa | Media Area m² | Average Efficiency | Average Arrestance |
|---|---|---|---|---|---|---|---|
| 595*595*95mm | MERV 14 | 3,400 | 110 | 350 | 14.901 | 90–95% | ≥99% |
| 289*595*95mm | MERV 14 | 1,700 | 110 | 350 | 7.269 | 90–95% | ≥99% |
MIT Technical Reference

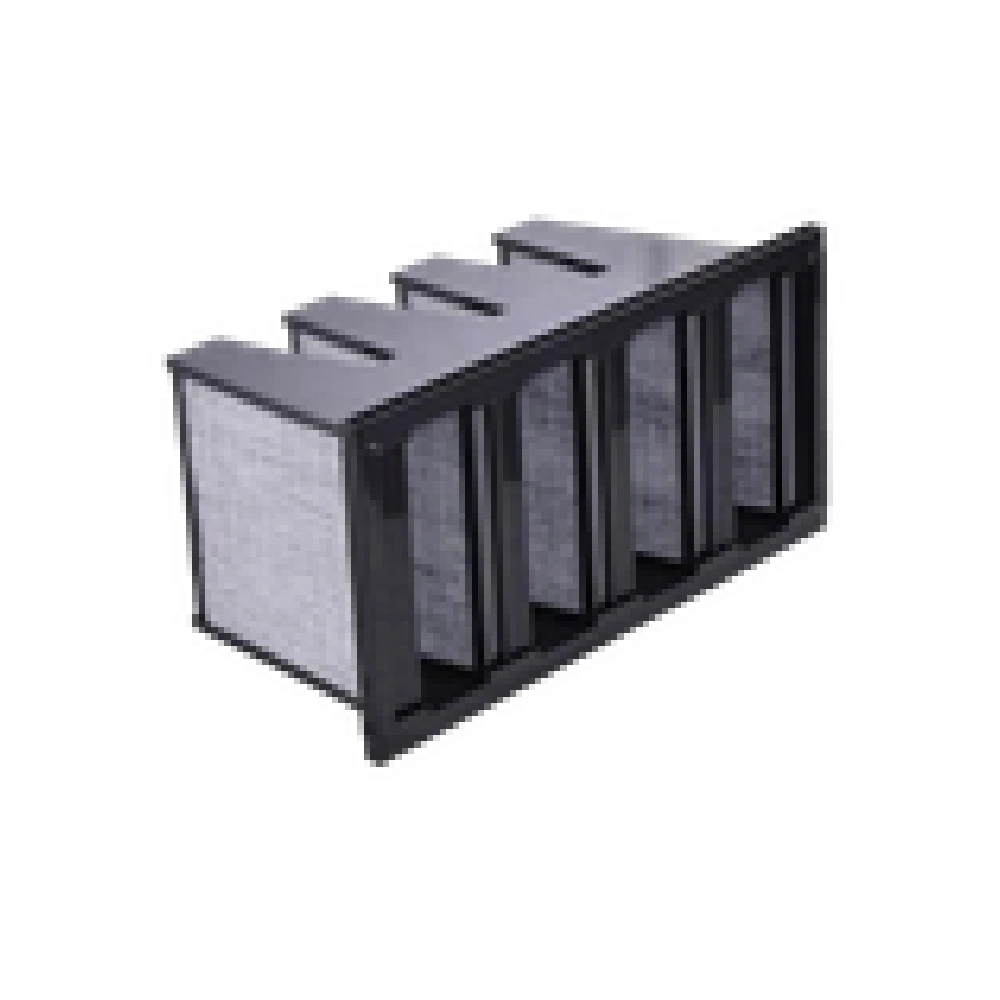

V-Cell Glass-Fibre Filter
ABS plastic frame; glass-fibre media; without gasket
| Source Dimensions | MERV | Airflow m³/h | Initial ΔP Pa | Final ΔP Pa | Media Area m² | Average Efficiency | Average Arrestance |
|---|---|---|---|---|---|---|---|
| 12*24*12" (287*592*292mm) | MERV 14 | 2,000 | 120 | 350 | 18.81 | 90–95% | ≥99% |
| 24*24*12" (592*592*292mm) | MERV 14 | 3,600 | 120 | 350 | 9.46 | 90–95% | ≥99% |
| 24*16*12" (592*392*292mm) | MERV 14 | 2,400 | 120 | 350 | 11.44 | 90–95% | ≥99% |
MIT Technical Reference
V-Cell Activated-Carbon Filter
ABS plastic frame; activated-carbon media; without gasket
| Source Dimensions | MERV | Airflow m³/h | Initial ΔP Pa | Final ΔP Pa | Media Area m² | Average Efficiency | Average Arrestance |
|---|---|---|---|---|---|---|---|
| 12*24*12" (287*592*292mm) | MERV 15 | 1,700 | 95 | 350 | 5.39 | 95–98% | ≥99% |
| 12*24*24" (292mm*592*592) | MERV 15 | 3,400 | 95 | 350 | 11.99 | 95–99% | ≥99% |
| 24*16*12" (592*392*292mm) | MERV 15 | 2,250 | 95 | 350 | 7.7 | 95–100% | ≥99% |
MIT Technical Reference

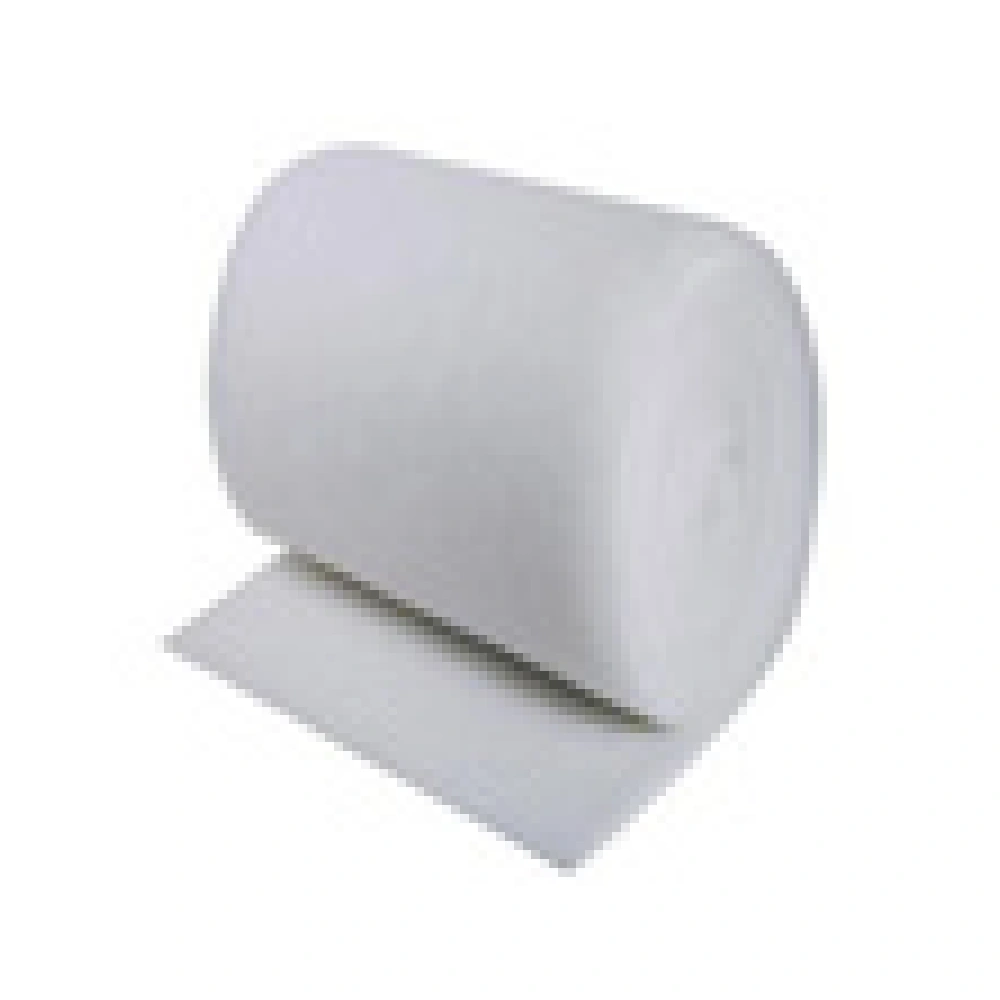

Synthetic Washable Roll (White)
White synthetic washable roll
| Source Dimensions | MERV | Airflow m³/h | Initial ΔP Pa | Final ΔP Pa | Media Area m² | Average Efficiency | Average Arrestance |
|---|---|---|---|---|---|---|---|
| 2m*20m*20mm | MERV 8 | 5,400.00 | 25.00 | 250.00 | 40.00 | 30–40% | ≥88% |
Source part number: FQRT-WRF-E80-2MX20MX20MM
MIT Technical Reference

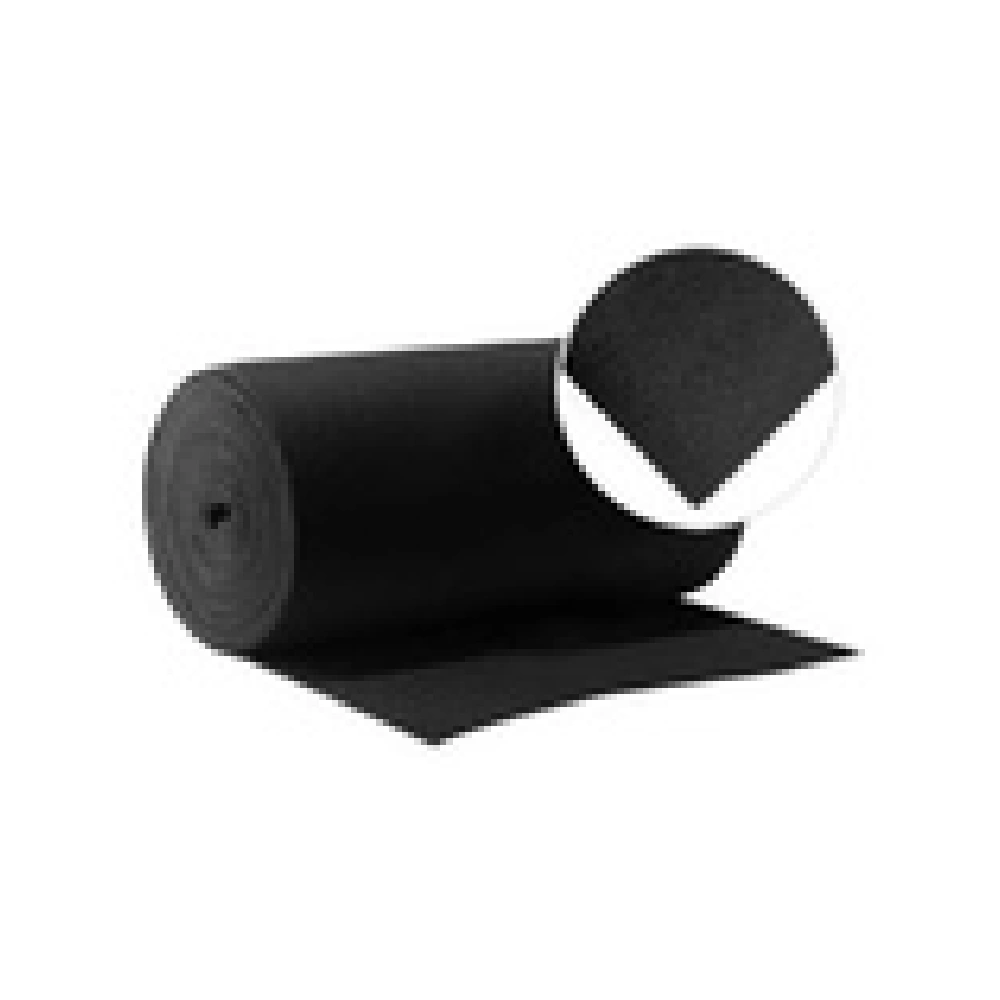

Carbon Roll Filter
Carbon content: 225 g/m²
| Source Dimensions | MERV | Airflow m³/h | Initial ΔP Pa | Final ΔP Pa | Media Area m² | Average Efficiency | Average Arrestance |
|---|---|---|---|---|---|---|---|
| 2m*25m*12mm | 3,400.00 | 38.00 | 250.00 | 50.00 | — | — |
ASHRAE 52.1/52.2 correlation data; source manufacturing/laboratory tolerance ±10%. A dash means the source sheet does not specify a value. Nominal and actual dimensions are retained as printed.
