FilteQ

Synthetic Pocket Filter Media Roll

Filter material for air filtration applications. Available specifications are shown in the catalogue data sheet.

Features

Materials: polypropylene (PP) and polyester fiber (PET);
Multi layer non-woven fabric composite, three- dimensional network structure, to meet the layered filtration;
High dust capacity and long service life;
Low initial resistance and high efficiency;
The material is non-toxic, tasteless, environmentally friendly and completely disposable.

Applications

It is mainly used as raw materials for bag filter and plate filter in general ventilation system. ecification Standard Type ‘SFSOS 4.5+0.5 17043 6t2 180+10 White ‘SFSO6 i a 50.5 195+3 10+2 190+10 3 Green EN779:2012 ‘SFSO7 FT 150 5.5+0.5 205+3 15+2 210410 85 Pink SFSO8 FS 150 6£0.5 220+3 2242 220+10 90 Yellow SFSO9 FO 150 6.5+0.5 235+3 28+2 230+10 95 White Economical Type SFSOS 4540.5 125+3 542 160+10 White ‘SFSO6 7 i 5.505 14043 9+2 170+10 aa Green EN779:2012| _ SFSO7 FT 150 6.5405 17043 142 190+10 85 Pink SFSO8 FS 150 7.5405 200+3 1842 200+10 90 Yellow SFSO9 FO 150 8+0.5 220+3 22+2 210+10 95 White High Standard Type ‘SFSOS 4540.5 13043 5+2 200+10 White ‘SFSO6 M6 150 5+0.5 15043 942 210+10 65 Green EN779:2012, SFSO7 FT 150 5.5405 155+3 1442 23010 85 Pink SFSO8 FS 150 6t0.5 16543 20+2 240+10 90 Yellow SFSO9 FQ 150 6540.5 22543 26+2 250+10 95 White Flame Retardant Type SFFOS 2.50.5 115+3 st2 180+10 White SFFO6 M6 150 2.5+0.5 11543 12+2 180+10 65 Green EN779:2012 SFFO7 FT 150 2.5405 115+3 1gt+2 180+10 85 Pink ‘SFFOS. F8 150 2.5+0.5 12543 2542 180+10 90 Yellow SFFO9 FO 150 2.5405 12543 31t2 180+10 95 White

Technical Specifications

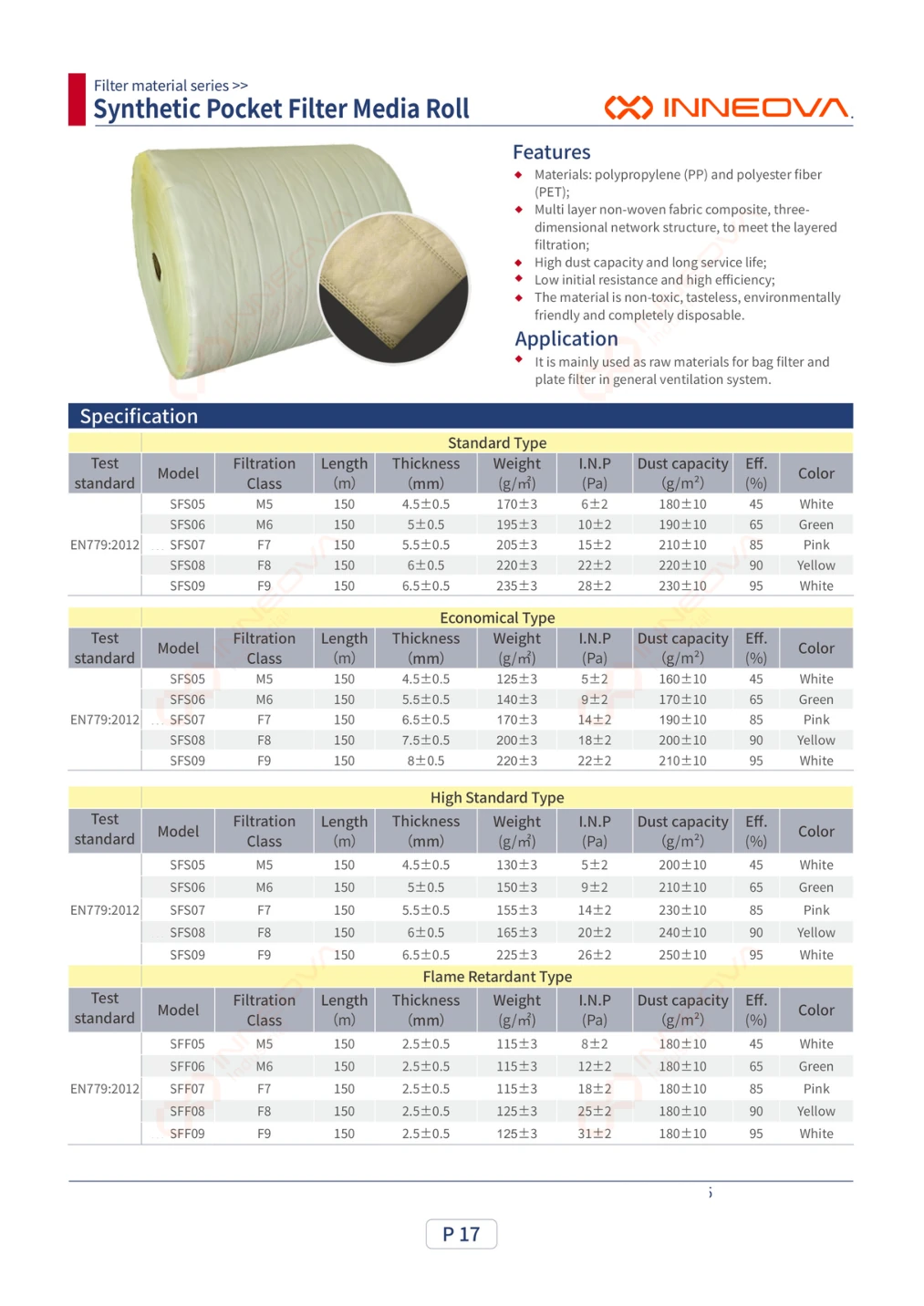

The original catalogue data sheet below includes the features, applications, material, filter class, operating conditions, model specifications and units for this range. Click the sheet to view it at full size.
