Blue-White Pre Filter Media

Features

• Resistant to fracture, high elasticity;
• The filter material fiber is encrypted step by step from blue (air inlet side) to white (air outlet side), and stratified filtration;
• Large dust holding capacity and stable performance;
• Long service life;
• Silicone free;
• Available to supply in cut pad or rolls;

Applications

Suitable for pre-filtration of various ventilation systems, air-conditioning systems and dust removal systems. echnical parameters Main material Polyester fiber (PET) F1(DIN 53438)/B1(GB/T 17591-2006) G2, G3, G4(EN779) 300g/m*, 400g/m*, 500g/m’ .600g/m’ Coarse dust and foreign matter>5ym 250Pa(Suggestion) 95%(ASHRAES2.1-1992)

Technical Specifications

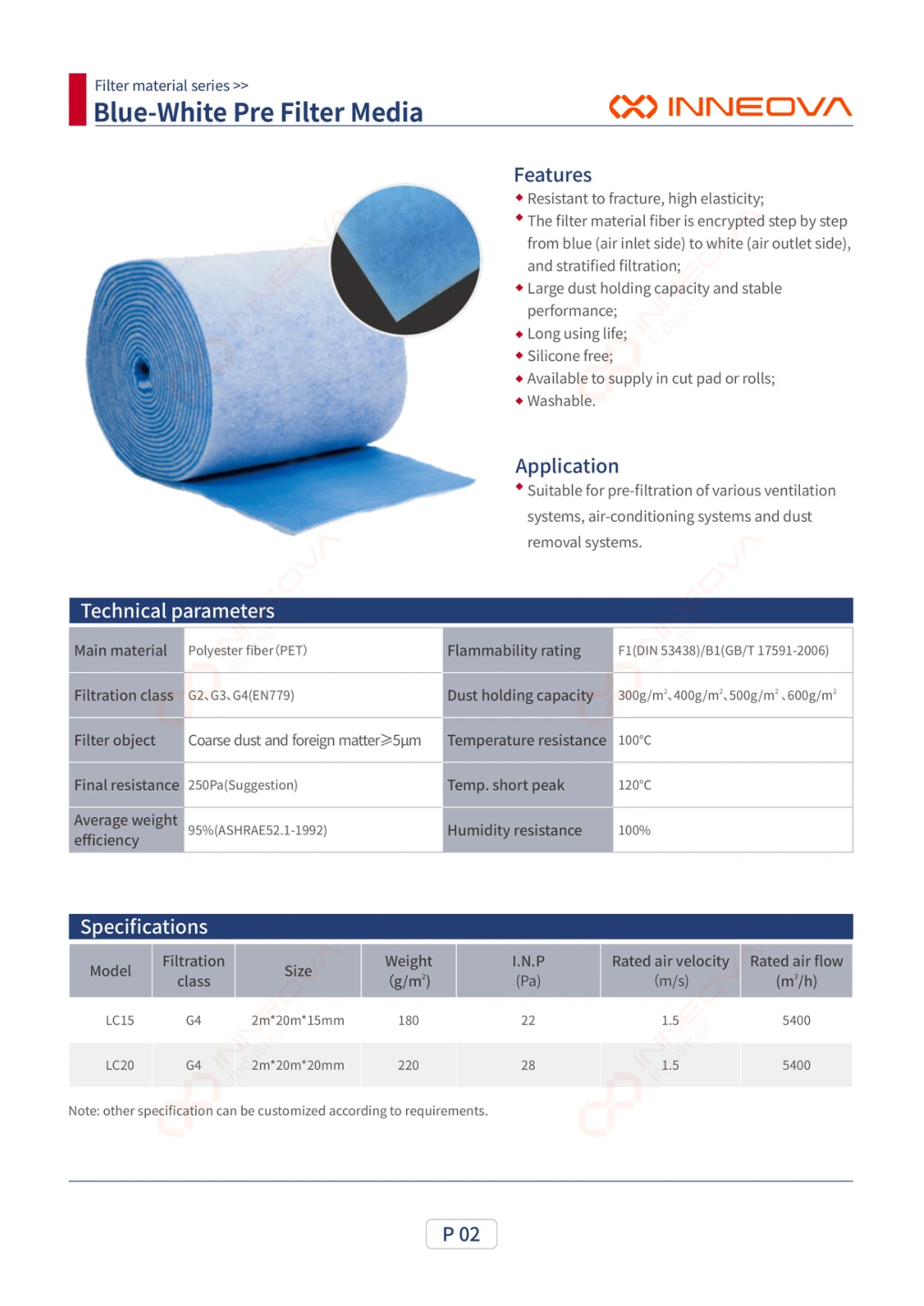

The original catalogue data sheet below includes the features, applications, material, filter class, operating conditions, model specifications and units for this range. Click the sheet to view it at full size.

Catalogue Series
